HYBRID ceramic heating panels

The HYBRID ceramic panel is an independent heating device that, when combined with multiple units, creates a complete and efficient heating system. By using the appropriate number of panels, you can easily heat spaces of any size.

HYBRID ceramic heating panels are ideal for heating apartments, homes, and offices. Their low power consumption allows for even distribution of heat throughout a room, preventing hot or cold spots. Also, HYBRID panels can be used as an additional heat source alongside traditional heating systems. Thanks to their low energy usage, they are also perfect for integration with solar or wind power systems.

The HYBRID panel is the first patented development of HYBRO that has changed the idea of organizing a residential heating system and created a whole niche — ceramic heating panels.

SAFETY Protection degree IP44. Dust and moisture proof.

INSTALLATION Simple and fast

SAVING The combination of far-infrared and convection heat flows.

DESIGN The ultra-thin panel will complement the modern interior.

FUNCTIONALITY Uses as the main type of heating, as well as a standalone heater.

QUALITY Official warranty — 5 years. Service life is more than 30 years

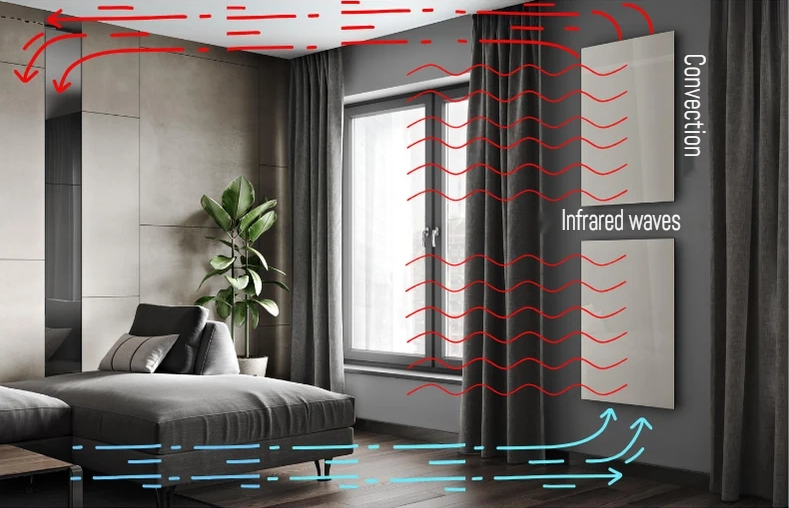

The HYBRID panel has a hybrid way of transferring heat uniting in itself two principles of heating - an infrared and thermal-convection current. Thanks to such an approach it's possible to reach the maximum effect of a heat interchange by proportion of the size and power.

The warmed ceramic panel up to the temperature of 65-70° With is the effective thermal source working in an infrared range in the long-wave range of 7-14 microns. The convection heat flux is formed between a wall (on which the panel hangs) and the panel which back is warmed up to 80-85 °C. High level of thermal efficiency several times cuts down expenses on heating in comparison with traditional types of heating.

When heating the room with panels of low power, you have an opportunity to distribute the heat sources so that to avoid emergence of excessively cold or hot zones.

The HYBRID panels are monolithic devices, which differ in the maximum durability.

Panels are manufactured of ceramics, and accordingly have high heat-retaining properties.

The calibrated ceramics is hermetically built in the metal case by means of an ecological heat-conducting compound. The metal case with a polymeric covering is manufactured by a conveyor method that provides the accuracy and repeatability of each product.

A flexible cable in organic-silicon isolation, which is equally placed between the case and ceramics, is used as a heating element. This cable is heat-resistant, and outperforms the available analogs in all respects

HYBRID 375

• Power                                  375 W
• Size                600 х 600 х 12 mm
• Color                         white/black
• Operating frequency   50-60 Hz
• Voltage                               230 V
• Weight                                 10 kg
• Casing                                 Metal
• Surface                         Ceramics
• Protection degree                 IP44
• Operating temperature         70⁰C

HYBRID 420

• Power                                 420 W
• Size                900 х 450 х 14 mm
• Color                         white/black
• Operating frequency   50-60 Hz
• Voltage                               230 V
• Weight                                 12 kg
• Casing                                 Metal
• Surface                          Ceramics
• Protection degree                  IP44
• Operating temperature        70⁰C

HYBRID 550

• Power                                 550 W
• Size                900 х 600 х 15 mm
• Color                         white/black
• Operating frequency   50-60 Hz
• Voltage                               230 V
• Weight                                 18 kg
• Casing                                 Metal
• Surface                         Ceramics
• Protection degree                 IP44
• Operating temperature       70⁰C
